unique orthopaedic devices

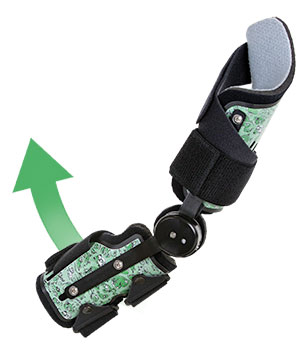

Paediatric CDS^® Elbow Brace Flexion (360° Hinge)

To provide elbow flexion assist

Indications

Joint contractures

– After surgery
– After conservative treatment of capsular ligament injuries
– Before and after joint replacement
– In arthrosis and chronic polyarthritis
– After burns
– After strokes
– After cranio-cerebral trauma (CCT)

To prevent new contractures after arthrolysis
Treatment after biceps tendon rupture

Features

Individual adjustment of the spring tension
Spring tension can be switched on and off without tools and without varying the set spring tension
Variable adjustment of the correction range in flexion
Individual adjustment of shells in position and shape
High wearing comfort due to air-permeable, light-weight fabric shells

Mode of operation

The CDS^® Paediatric Elbow Brace Flexion can be used to treat an extension deficit of the elbow.
The dynamic stretch stimulates the healthy growth of the shortened tissue.
The continuously adjustable correction range prevents harmful over stretching.

Download CDS Brochure

CDS ELBOW FLEXION
FITTING INSTRUCTIONS FOR CLINICIANS
Access restricted to registered Clinicians
You'll need to click here then log in to activate

Size chart and product codes

Size	Bambini (XSXS)	Junior (SS)
Length of upper arm shell medial	14 - 17 cm	17 - 20 cm
Length of forearm shell	14.5 cm	17.5 cm
Circumference of upper arm	12 - 17 cm	15 - 21 cm
Circumference of forearm	12 - 14 cm	14 - 19 cm
Code-left	907XSXS-L	907SS-L
Code-right	907XSXS-R	907SS-R
Colour options	*black	*black
Optional handle
Code left	993S-HL
Code right	993S-HR
